Check the compatibility of your door here. This product is suitable for lift-to-lock doors.

A keyless door handle built with a 304 stainless-steel body, IP65 weather rating, and multiple access methods (fingerprint, PIN, RFID, app). Supports local/offline data storage and remote unlocking when paired with an optional Wi-Fi Bridge.

Access & Entry Features (All Methods)

Fingerprint unlock (stores up to 100 fingerprints) using a 508dpi precision sensor

PIN/passcode unlock (stores up to 250 codes), including permanent, one-time, custom, and timed options

RFID key cards (stores up to 1000 encrypted M1 cards; 2 cards included)

Smartphone app unlock & management via TTLock

Remote unlocking from anywhere when using an optional Wi-Fi Bridge

Voice control compatibility with Amazon Alexa and Google Assistant

Mechanical backup keys (3 included)

Security, Privacy & Safety Features

Encrypted RFID + fingerprint data protection

Virtual password entry (anti code-theft / anti-peep style PIN entry)

Local AI self-learning + offline data storage (user data stored on the lock rather than in the cloud)

Built-in internal childproof lock

Emergency USB-C power port for access if batteries fail

Smart/App Functions (TTLock)

Lock/unlock via Bluetooth (and via Wi-Fi when paired with Wi-Fi Bridge)

Create, send, and manage eKeys (digital keys)

Create passcodes with time/date restrictions

View entry logs / activity records

Offline operation supported

Remote control + voice assistant integration (requires Wi-Fi Bridge)

Installation & Door Compatibility

Adjustable screw centres designed to suit ~90% of lift-to-lock multipoint handle patterns (retrofit-focused)

Retrofit-friendly installation approach with minimal modification

Optional timber door kit available for wooden door installs

Lock compatibility: lever-operated multipoint or mortice lock

Backset requirement: ≥ 30mm

Door thickness range: 40–90mm

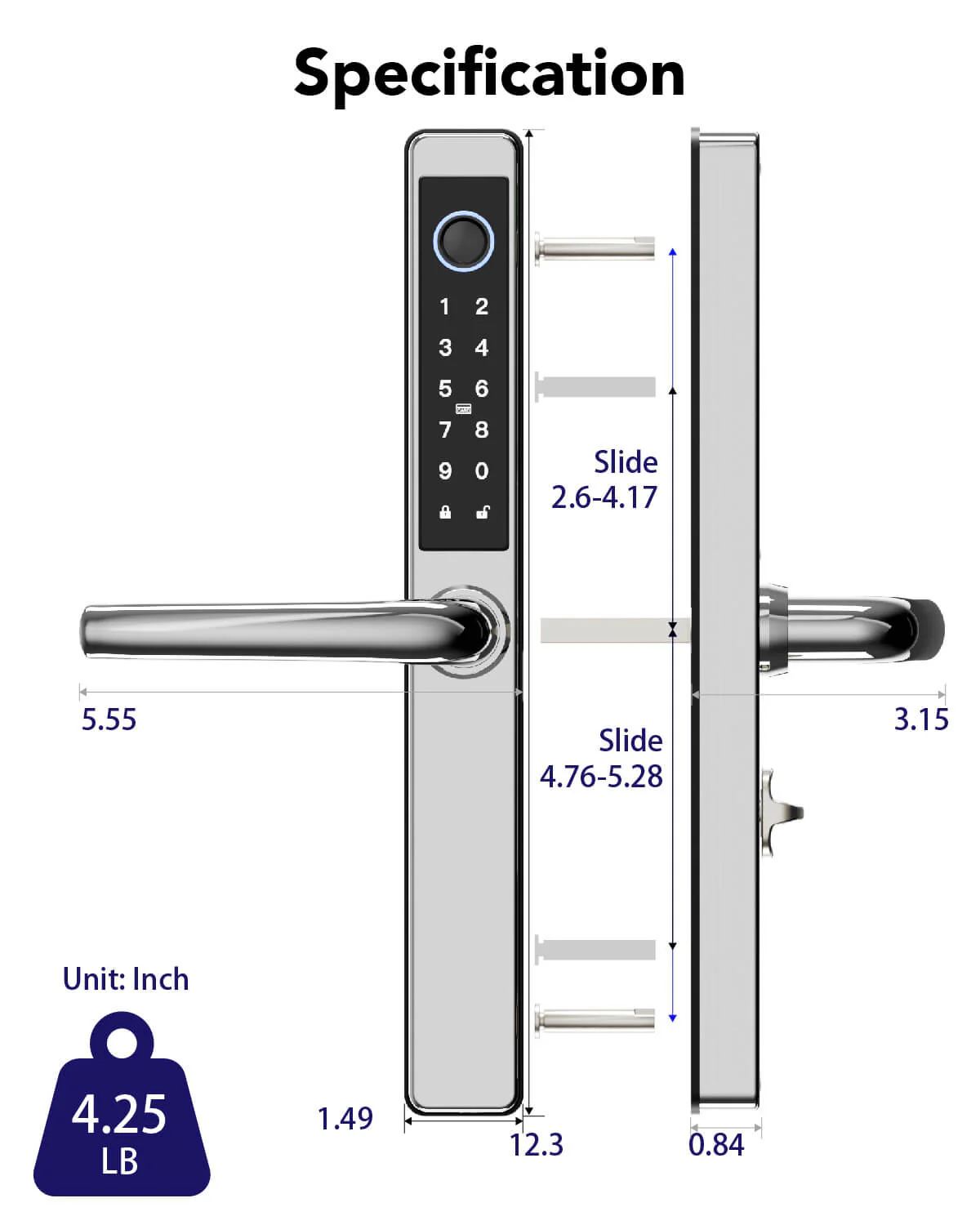

Technical Specifications

Material: 304 Stainless Steel

Finishes/Colours: Brushed Silver / Polished Chrome / Matte Black

IP rating: IP65

Operating temperature: -25°C to 75°C

Humidity resistance: 10%–95% RH

Bluetooth: 5.0

Wi-Fi: via optional Wi-Fi Bridge

Power: 4 × AAA alkaline batteries

Battery life: 6+ months

Emergency power: USB-C

Phone requirements: iOS 7.0+ / Android 4.3+

Supported platforms: TTLock / Alexa / Google Home

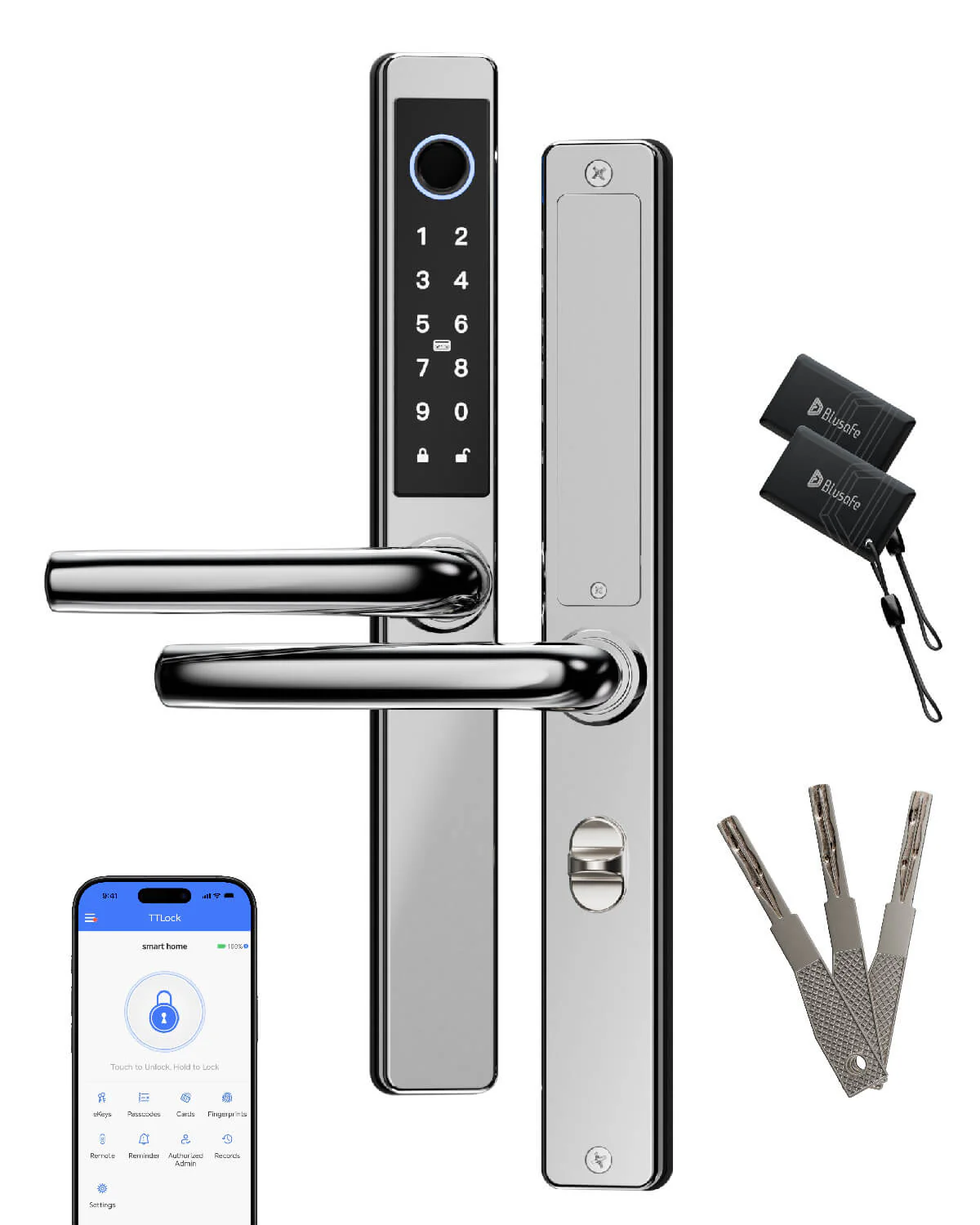

What’s Included (In the Box)

Origin Smart – Plus smart handle

3 spindles: 80mm / 100mm / 110mm

2 RFID key cards

3 mechanical keys

Fitting jig

Suction cup

2 gaskets

Full screw set for multipoint doors

Other

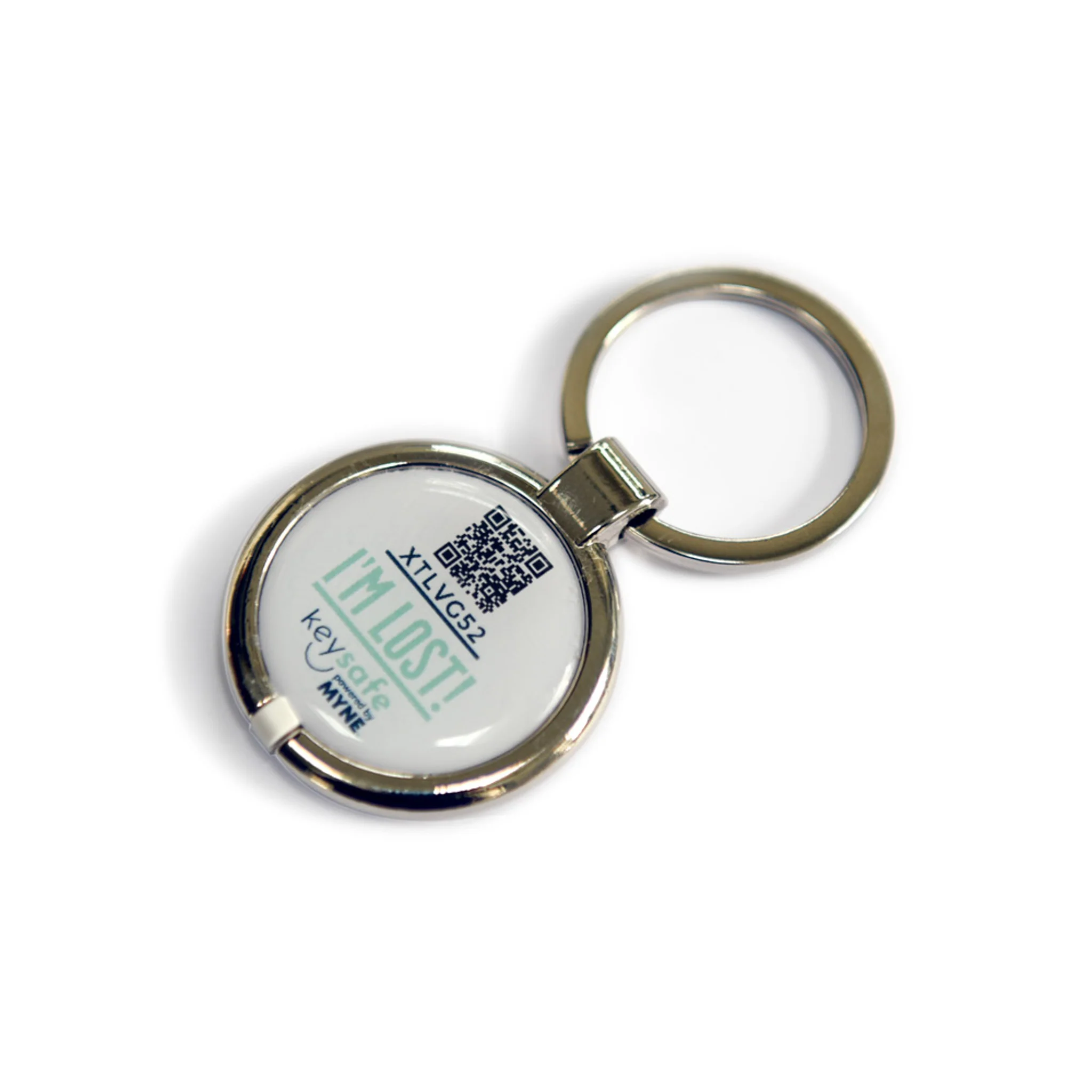

Digital Keyring

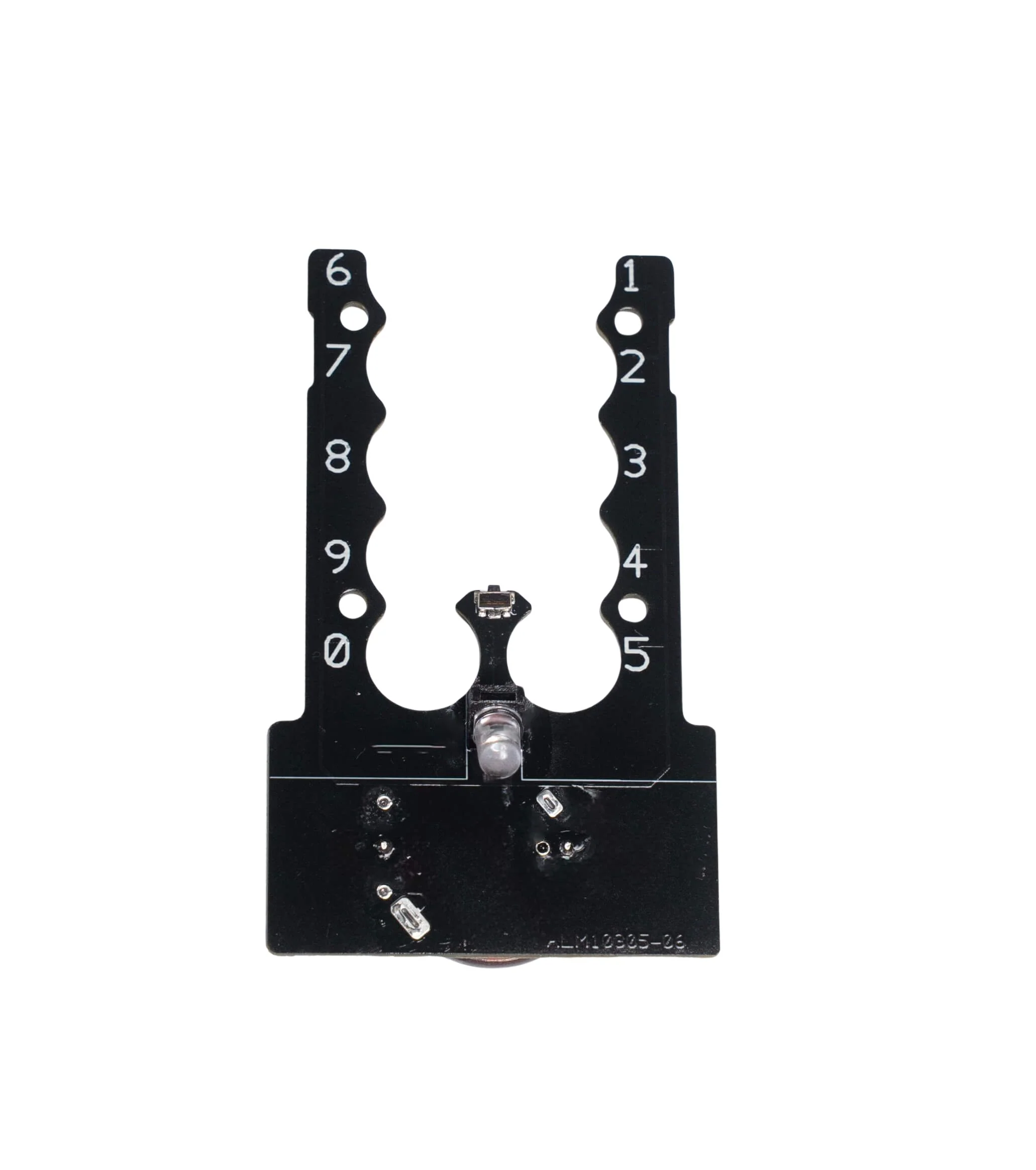

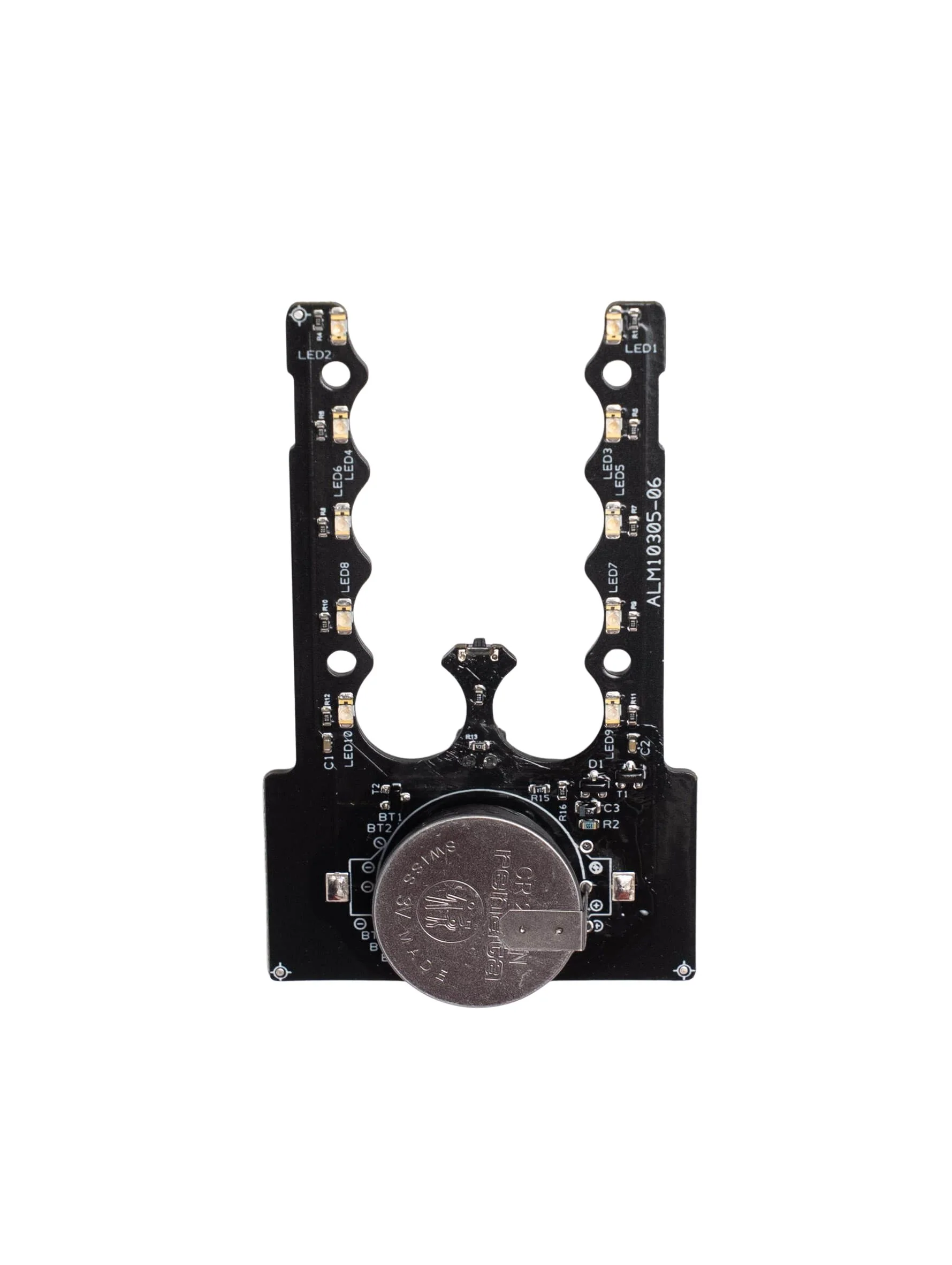

Replacement Integrated Illumination Module for ark Tamo & Tamo Pro

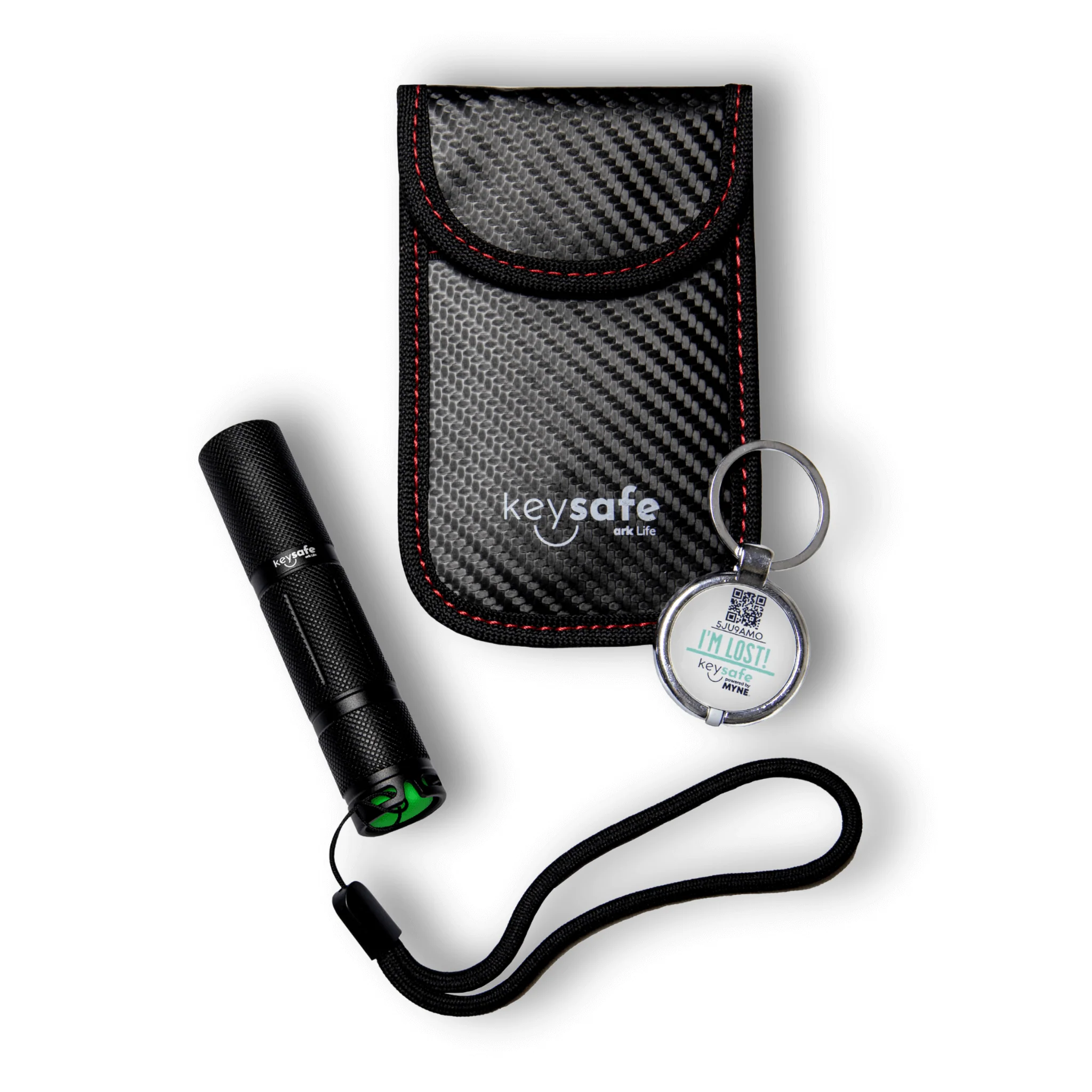

Security Accessories Bundle
